Clinical Details
Advanced visualization that enables you to tailor your treatment for every patient
Our IVUS catheters aid in coronary and peripheral vascular disease diagnosis by helping you visualize vessel and plaque morphology. Gain clear, detailed and accurate assessments to help you provide the best treatment for your patients.

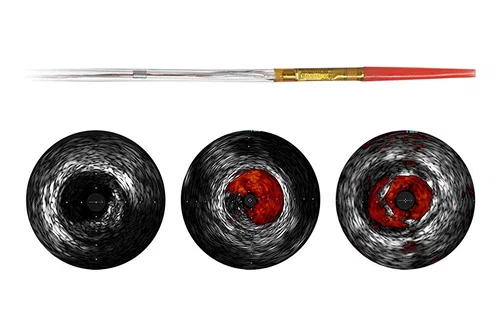

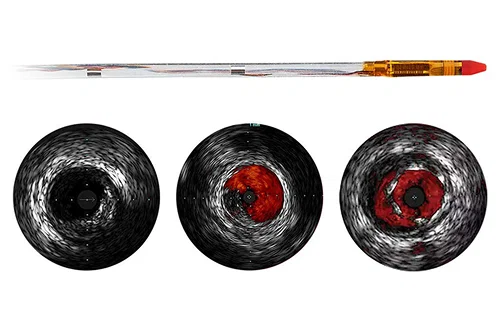

Eagle Eye Platinum Digital IVUS catheter
The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.
Eagle Eye Platinum ST Digital IVUS short tip catheter
The Eagle Eye Platinum ST digital IVUS catheter offers a 2.5 mm tip-to-imaging distance designed to assess more of the vessel than standard catheters by providing a closer visualization of highly stenosed lesions and distal anatomy. The short tip catheter fits through all 5F guides and has all features of our top-selling Eagle Eye Platinum model, including plug-and-play simplicity, three radiopaque markers, GlyDx hydrophilic coating, and SyncVision compatibility.*

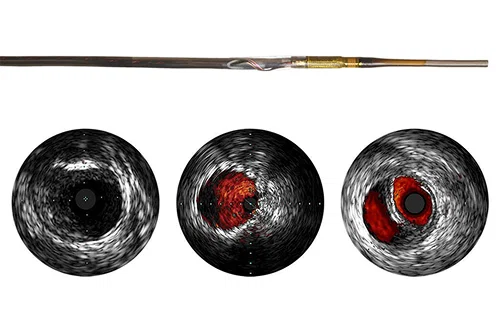

Refinity Short-tip rotational IVUS catheter
Philips’ next generation rotational IVUS catheter. With exceptional deliverability, it navigates through challenging lesions with ease. With 5F guide compatibility, it enables radial access and with 45 MHz high resolution image, it creates clear, crisp images for accurate vessel interpretation and lesion assessment.

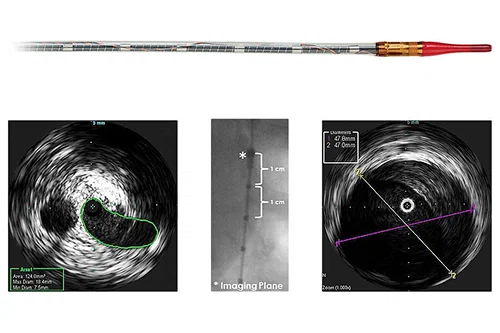

Visions PV .035 Digital IVUS catheter
As an adjunct to conventional angiographic interventions, the Visions PV .035 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 90 cm length and 60 mm max imaging diameter for 0.035” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and venous disease and guides clinicians toward the correct therapy for the patient’s unique needs.
Visions PV .018 Digital IVUS catheter
As an adjunct to conventional angiographic interventions, the Visions PV .018 digital IVUS catheter evaluates vascular morphology in blood vessels and provides cross-sectional imaging of these vessels. With a 135 cm working length and 24 mm max imaging diameter for 0.018” guide wire interventional procedures, the device aids in peripheral artery disease diagnosis and guides clinicians toward the correct therapy for the patient’s unique needs.
Image-guided therapy Pressure guide wires
Unlock critical data for informed decision-making during PCI Our pressure guide wires play a vital role in the diagnosis and management of cardiovascular conditions. Designed for easy maneuverability and reliability, our pressure wires help to assess the hemodynamic significance of coronary artery disease.

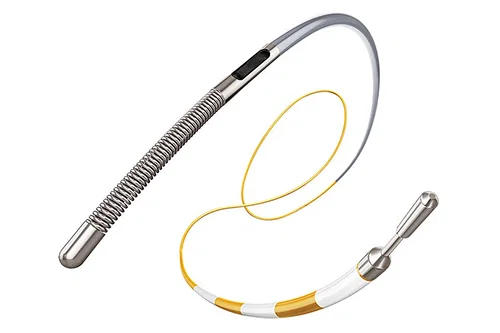

OmniWire Pressure guide wire
OmniWire combines a unique solid core workhorse design with iFR proven outcomes and iFR Co-registration compatibility, making it easy to use physiology throughout complex cases.¹,²,³ New Nitinol distal core increases durability and shape recovery. Unique solid core improves torque and pushability. Integrated conductive bands for greater signal reliability.
Angiography alone is not enough
Philips intravascular ultrasound (IVUS) imaging offers advanced visualization that enables you to decide the best therapy option, guide pre-stent planning and optimize treatment results. Discover how Philips IVUS benefits your treatment plans in coronary and peripheral interventions.

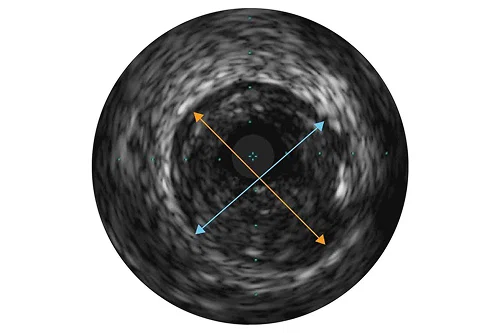

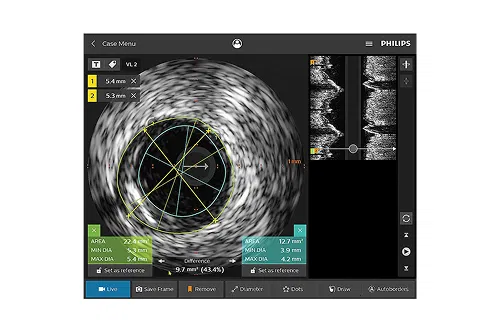

Assessment of vessel size
Vessel diameters may be determined at proximal and distal reference sites by obtaining lumen diameters, mid-wall diameters (halfway between lumen and vessel), or vessel diameters, in order of increasing aggressiveness. If maximum and minimum diameters are used, measurements should bisect the geometric center of the vessel rather than the center of the IVUS catheter.

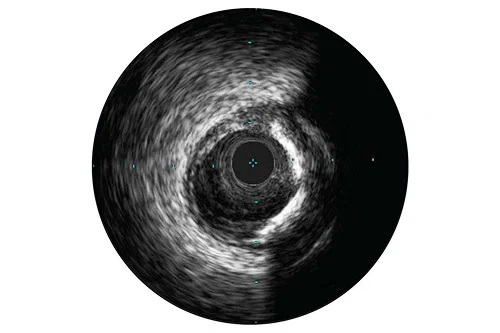

Assessment of lesions
IVUS can help clarify the degree and type of stenosis (i.e, MLA, plaque burden, and calcium). While IVUS can also characterize plaque rupture, thrombus, and dissection, calcium may be more common in everyday PCI. Calcium is an important factor in your stenting strategy. It is characterized by very bright areas with acoustic shadowing and /or reverberations that may indicate calcium is present.
Assessment of lesion length
The ADAPT-DES study reported the use of IVUS was associated with a choice of longer stents [1]. With IVUS, you can confirm “healthy-to-healthy” landing zones by checking the plaque burden and tissue type at the lesion boundaries.

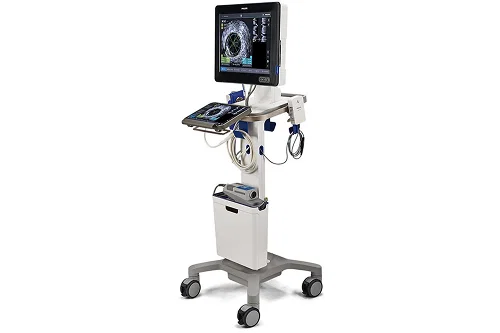

IVUS SYSTEMS Intrasight on a Mobile Platform
IntraSight Mobile is an easy-to-use, small footprint, digital IVUS imaging and physiology system, designed for peripheral vascular and coronary procedures, operable directly from the sterile field. This is available for the hospital, office-based lab, and ambulatory surgery center environment.

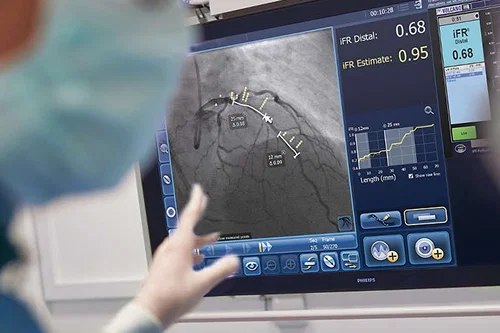

SyncVision Precision guidance system
The SyncVision precision guidance system is suitable with IntraSight and Core Integrated interventional platforms and streamlines lesion assessment, simplifies vessel sizing and enables precise therapy delivery all while integrating seamlessly in daily workflows in interventional suites of choice.

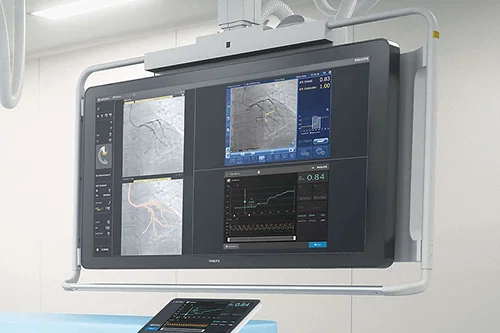

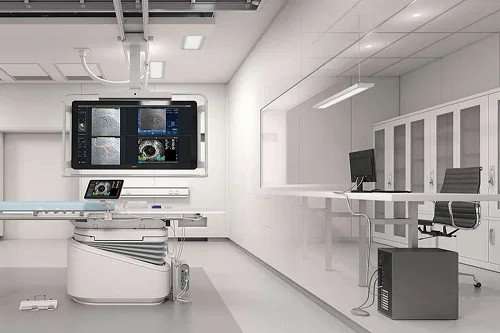

IntraSight Interventional applications platform
The IntraSight Interventional Applications Workspace is where imaging, physiology, coregistration* and software all come together to clearly identify coronary and peripheral artery disease, and allow for more optimized treatment plans. IntraSight is built on a new foundational platform designed to meet the evolving needs of your lab today and tomorrow.
